Revopoint MIRACO: Standalone 3D Scanner for Small to Large Objects Scanner

AVAILABLE FOR PRE-ORDER ONLY

Contact sales@digitmakers.ca

Introducing Revopoint's first standalone 3D scanner, the Revopoint MIRACO. It’s ready to support all your professional scanning needs. Whether you want to capture small or large items, its quad-Depth Camera system can do it all.

Download the Brochure of Revopoint MIRACO 3D Scanner Here

MIRACO'S Key Features

What’s in the Box?

  • MIRACO 3D Scanner
  • Tripod

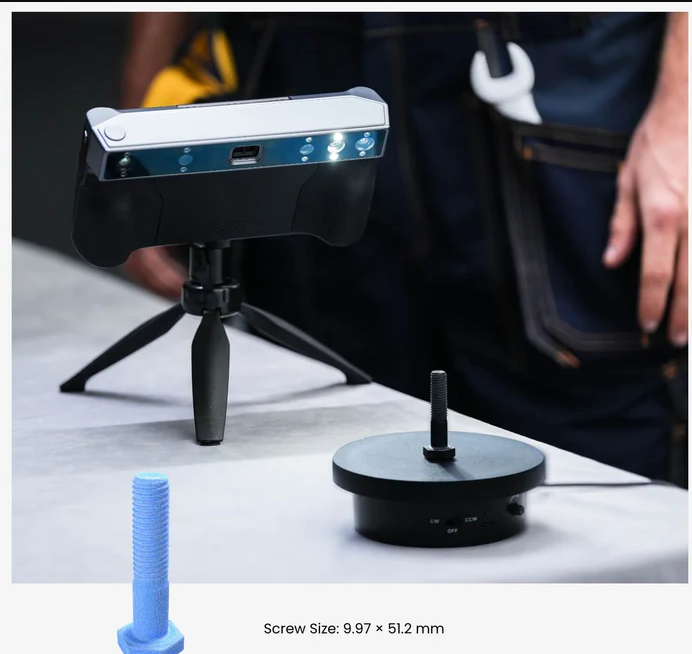

  • Mini Turntable & Sample Bust
  • Turntable Topper
  • Turntable Power Cable
  • Near-mode
  • Calibration Board
  • Magic Mat x 2
  • Wrist Strap
  • 65W Dual USB Type-C Port Power Adapter
  • USB Type-C to C Cable (1.8 m)
  • Markers
  • Certificate &
  • Warranty Card
  • Scanner Bag



Product Specification

Specifications

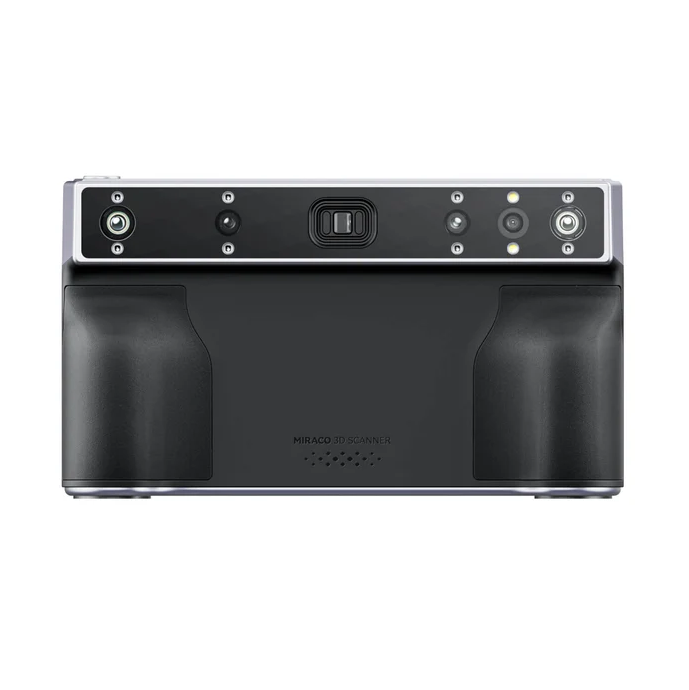

Product Name Revopoint MIRACO Technology Quad-camera Infrared Structured Light
Single-frame Accuracy, up to 0.05 mm Fused Point Distance 0.05 mm
Single Capture Area at Nearest Distance 28 x 53 mm at 100 mm Single Capture Area at Furthest Distance 975 x 775 mm at 1000 mm
Two Capture Modes Single-shot Mode , Continuous Capture Mode Scanning Speed，up to 15 fps
Minimum Scan Volume 10 x 10 x 10 mm Maxmium Scan Volume 4000 x 4000 x 4000 mm

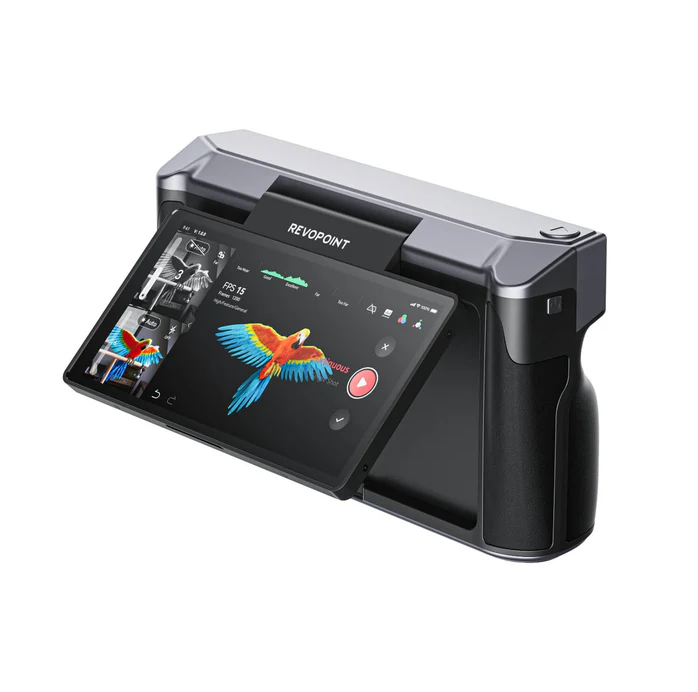

Working Distance 100 - 1000 mm Screen 6” 2k AMOLED Touch Screen
Auxiliary Lighting Infrared Fill Lights, Flash LEDs 3D Light Source Class 1 Infrared Light
Storage 256 GB eMMC Position Sensors 9-axis IMU
Memory (RAM) 16 GB or 32 GB DDR4 (32GB only in MIRACO Pro) RGB Camera Resolution，up to 48 Megapixels
Scanner Weight 750 g Dimensions（L x W x H） 200 x 50 x 110 mm
Battery Capacity Internal lithium Battery 5,000 mAh, supporting up to 2-hour continuous scanning CPU 8-core CPU，2.4 GHz
Tracking Methods Feature , Marker Protection Rating IP45
Connector Type USB Type-C  Wi-Fi Type Wi-Fi 6
Compatible Systems Windows 10/11, macOS Operating System Native Android System
Special Object Scanning Use scanning spray for transparent, dark, or highly reflective objects. Scanning Environment Indoors and Outdoors
Output Formats PLY, OBJ, and STL 3D Printing Compatible Yes
